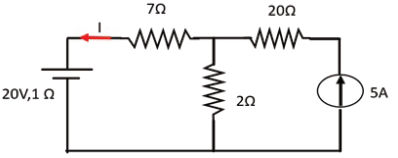

    In the circuit shown here, the 20 V source has an internal resistance of 1 Ω. While the current source is ideal, the value of current I is _________.
    Question

    In the circuit shown here, the 20 V source has an internal resistance of 1 Ω. While the current source is ideal, the value of current I is _________.

    A.

    10 A

    B.

    -1 A

    C.

    5 A

    D.

    1 A

    Correct option is B

    Applying KCL at node ’A’:5=VA208+VA2VA=12 VI=12208=88=1 A\text{Applying KCL at node 'A':} \\[4pt]5 = \frac{V_A - 20}{8} + \frac{V_A}{2} \\[8pt]V_A = 12\,\text{V} \\[8pt]I = \frac{12 - 20}{8} = \frac{-8}{8} = -1\,\text{A}​​
