Which of the following statement is true regarding End Condenser method used for the performance analysis of medium transmission line?
Question

Which of the following statement is true regarding End Condenser method used for the performance analysis of medium transmission line?

A.

Line capacitance is lumped at the sending endduring the analysis.

B.

Line capacitance is considered distributed parameter during the analysis.

C.

Line capacitance is lumped between resistance and Inductance during analysis.

D.

Line capacitance is lumped at the receiving endduring the analysis.

Correct option is C

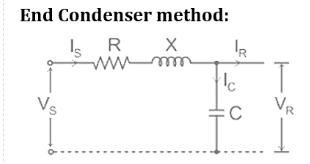

It is used for the performance analysis of medium transmission line.Line capacitance is lumped at the receiving end during the analysis.ABCD parameter A=1+YZB=ZC=YD=1\text{It is used for the performance analysis of medium transmission line.} \\[4pt]\text{Line capacitance is lumped at the receiving end during the analysis.} \\[6pt]\text{ABCD parameter } \rightarrow A = 1 + YZ \\[4pt]B = Z \\[4pt]C = Y \\[4pt]D = 1​​
