    In case of AC input signal in common emitter transistor the load line can be given by which of the following?
    Question

    In case of AC input signal in common emitter transistor the load line can be given by which of the following?

    A.

    VCE and RCV_{CE} \text{ and } R_C \\​​

    B.

    VBE and ICV_{BE} \text{ and } I_C \\​​

    C.

    VCE and ICV_{CE} \text{ and } I_C \\​​

    D.

    VBE and IbV_{BE} \text{ and } I_b​​

    Correct option is C

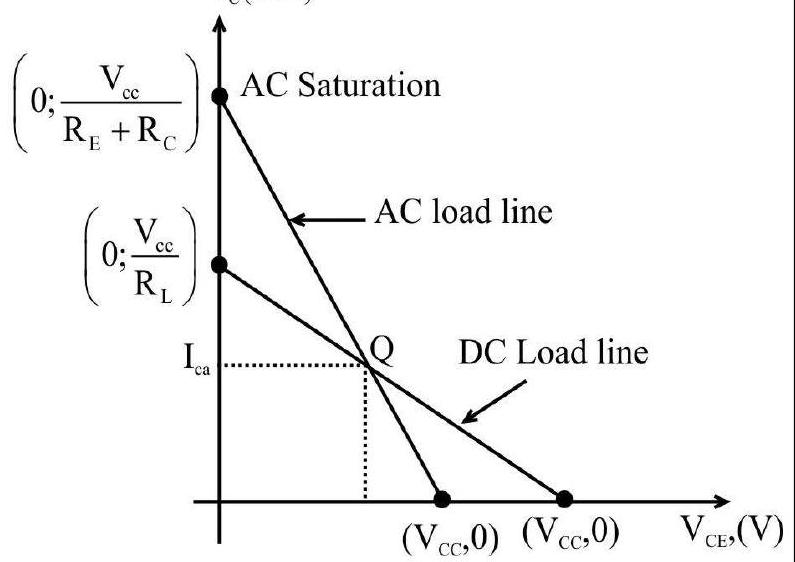

     VCE and IC: This is the correct answer. The load line in a common emitter configuration is drawn on the VCE-IC plane. It represents the relationship between the collector-emitter voltage and the collector current for a given external load.\text{ } V_{CE} \text{ and } I_C\text{: This is the correct answer. The } \mathbf{load\ line} \text{ in a common emitter configuration is drawn on the } V_{CE} \text{-} I_C \text{ plane. It represents the relationship between the collector-emitter voltage and the collector current for a given external load.}​​
