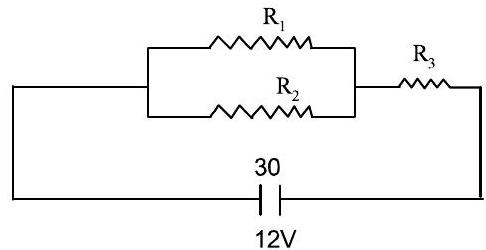

    Two resistors, one of 20Ω and the other of 30Ω, are connected in parallel. This combination is connected in series with an 8-Ω resistor and a 12-V battery. The current through the 20-Ω resistor is :

    A.

    0.12 A

    B.

    0.24 A

    C.

    0.36 A

    D.

    0.60 A

    Correct option is C

    R1=20Ω,R2=30Ω1R=1R1+1R2=120+130=560=112ΩR=12ΩR3=8ΩR=8+12=20ΩV=iRi=1220=>0.6 AVoltage drop across 12 Ohm is =12×0.6=7.2 VCurrent in 20Ω resistor=7.220=0.36=0.36 AR_1 = 20\Omega, \quad R_2 = 30\Omega\\\frac{1}{R} = \frac{1}{R_1} + \frac{1}{R_2} = \frac{1}{20} + \frac{1}{30} = \frac{5}{60} = \frac{1}{12} \Omega\\R = 12\Omega\\R_3 = 8\Omega\\R = 8 + 12 = 20\Omega\\V = iR\\i = \frac{12}{20} \Rightarrow 0.6 \text{ A}\\\text{Voltage drop across 12 Ohm is } = 12 \times 0.6 = 7.2 \text{ V}\\\text{Current in 20}\Omega \text{ resistor} = \frac{7.2}{20} = 0.36\\= 0.36 \text{ A}​​
