The loading beam. shear force and bending moment diagrams are given below. Find the value of "y’ (contraflexure point) from point B.

Question

The loading beam. shear force and bending moment diagrams are given below.
Find the value of "y’ (contraflexure point) from point B.

0.33 m

0.22 m

0.55 m

0.44 m

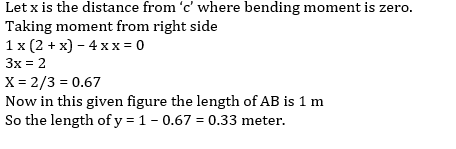

Solution

Correct option is A
