    According to Norton’s theorem, the expression for load current. is-
    Question

    According to Norton’s theorem, the expression for load current. is-

    A.

    IL=RL×ISCRint+RintI_L = R_L \times \frac{I_{SC}}{R_{int} + R_{int}}​​

    B.

    IL=ISCRint+RintI_L = \frac{I_{SC}}{R_{int} + R_{int}}​​

    C.

    IL=ISC×RintRint+RLI_L = I_{SC} \times \frac{R_{int}}{R_{int} + R_L}​​

    D.

    IL=RintRint+RLI_L = \frac{R_{int}}{R_{int} + R_L}​​

    Correct option is C

    According to Norton's theorem, the equation for load current:

    IL=ISC×RintRint+RLI_L = I_{SC} \times \frac{R_{int}}{R_{int} + R_L}

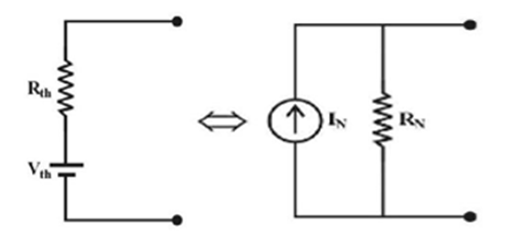

    By Norton’s theorem, any linear circuit consisting of multiple power sources and resistors can be replaced by a constant current source in parallel with a single resistor.

    Vth=IN×RNV_{th} = I_N \times R_N, Rth=RNR_{th} = R_N

    IN=VthRthI_N = \frac{V_{th}}{R_{th}}, RN=RthR_N = R_{th}​​​
