Correct option is C
Question

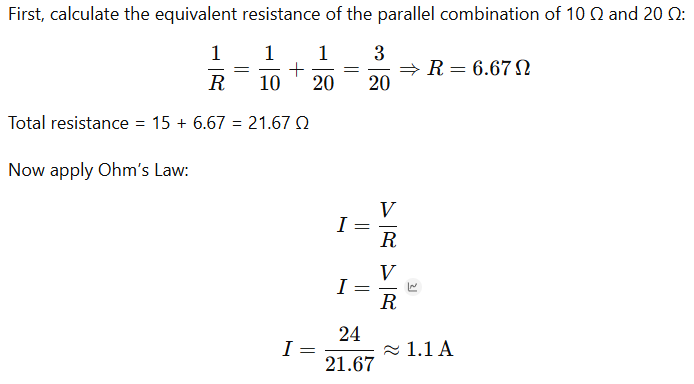

A circuit consists of three resistors; 15 ohms, 10 ohms, and 20 ohms. The 15-ohm resistor is in series with the parallel combination of the 10-ohm and 20-ohm resistors. If a 24 V battery is applied across the circuit, what is the total current flowing through the circuit?
