Correct option is B
Question

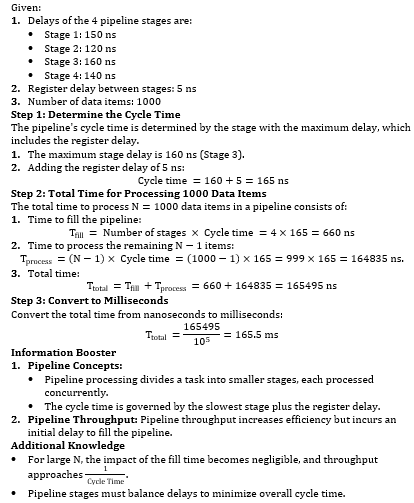

A 4-stage pipeline has the stage delay as 150, 120, 160 and 140 ns respectively. Registers that are used between the stages have delay of 5 ns. Assuming constant locking rate, the total time required to process 1000 data items on this pipeline is:
