The parameters of the Thevenin’s equivalent circuit for the network shown below are
Question

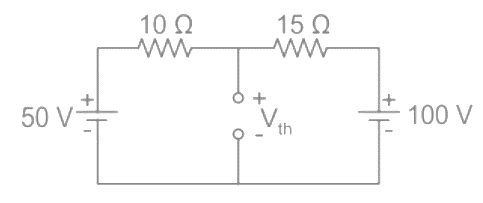

The parameters of the Thevenin’s equivalent circuit for the network shown below are

A.

RTH = 3.75 Ω; VTH = 62.5 V

B.

RTH = 25 Ω; VTH = 50 V

C.

RTH = 6 Ω; VTH = 70 V

D.

RTH = 6 Ω; VTH = 50 V

Correct option is C

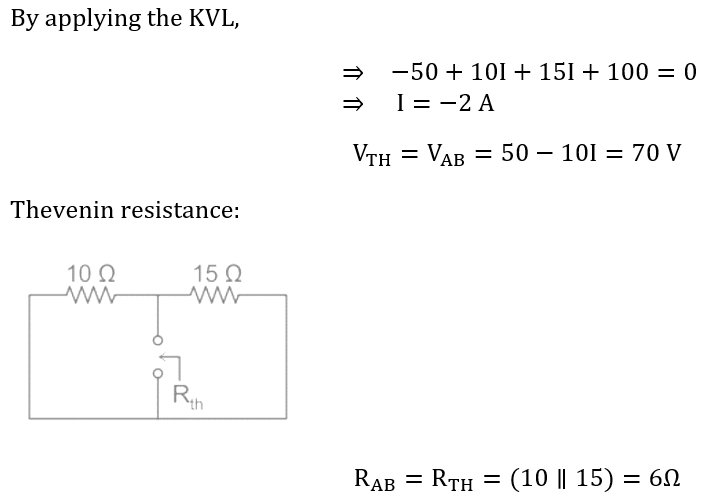

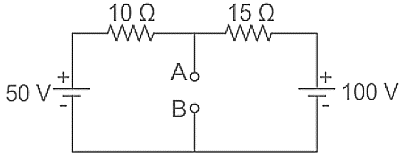

Thevenin voltage:
