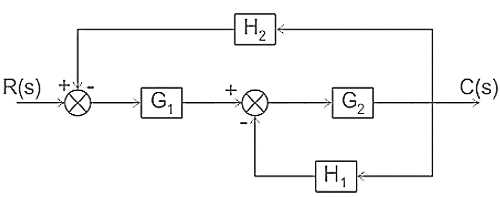

The overall transfer function C(s)/R(s) of the system shown in the figure below is
Question

The overall transfer function C(s)/R(s) of the system shown in the figure below is

A.


B.


C.


D.


Correct option is C

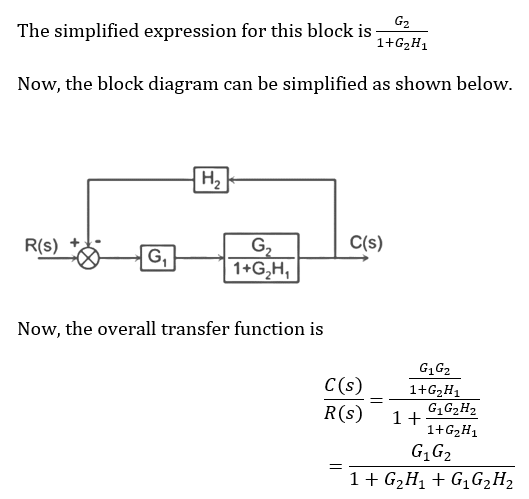

G2 and H1 are connected in a feedback loop.
