In a positive feedback control system, the feedback signal is with respect to the input signal.
Question

In a positive feedback control system, the feedback signal is with respect to the input signal.

A.

out of phase

B.

lagging by 900

C.

in phase

D.

leading by 900

Correct option is C

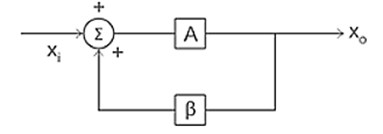

Gain Equation in Feedback Systems:Gain=XoXi=A1AβKey Characteristics of Positive Feedback: In positive feedback, the gain is increased and the bandwidth is reduced. The error signal in positive feedback systems diverges. Such a system is also referred to as a "Regenerative circuit".Conclusion:Hence, in a positive feedback control system, the feedback signal isin phasewith respect to the input signal.\textbf{Gain Equation in Feedback Systems:} \\[5pt]\text{Gain} = \frac{X_o}{X_i} = \frac{A}{1 - A\beta} \\[15pt]\textbf{Key Characteristics of Positive Feedback:} \\\bullet \, \text{In \textit{positive feedback}, the \textbf{gain is increased} and the \textbf{bandwidth is reduced}.} \\\bullet \, \text{The error signal in positive feedback systems \textbf{diverges}.} \\\bullet \, \text{Such a system is also referred to as a \textbf{"Regenerative circuit"}.} \\[15pt]\textbf{Conclusion:} \\\text{Hence, in a \textbf{positive feedback} control system, the feedback signal is} \\\boxed{\text{in phase}} \\\text{with respect to the input signal.}​​
