Correct option is D

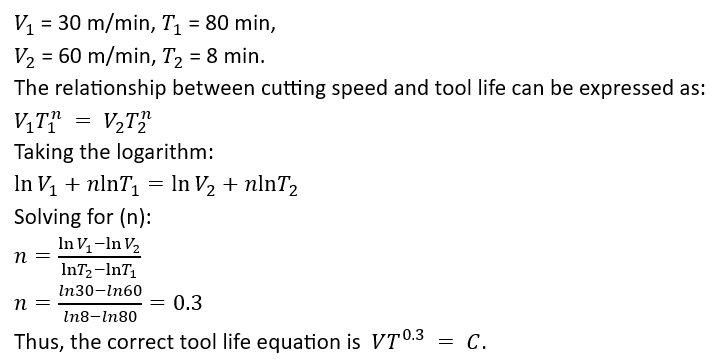

The tool life equation is generally represented by the formula where:
(V) is the cutting speed,
(T) is the tool life,
(n) is the tool life exponent,
(C) is a constant.
Given:
All Courses
Question
Find the tool life equation, if a tool life of 80 min is obtained at a cutting speed of 30 m/min and 8 min at 60 m/min.
Similar Questions
- 1)
A 20 mm diameter Aluminium rod is turned to 19 mm diameter in a single pass. If the axial speed of the tool is 200 mm/min and the spindle rotate at 600 rpm, the material removal rate is nearly
- 2)
In abrasive jet machining process, the main mechanism of material removal takes place due to?
- 3)
Which is the correct sequence of machining operations to be performed to finish a through hole of large diameter?
- 4)
A face milling operation is carried out with a 100 mm diameter milling cutter having 4 teeth and spindle speed of 300 rpm. If the feed per tooth is 0.125 mm, what is the table feed in mm/min?
- 5)
3D Printing Techniques are
- 6)What does 'V' represent in this conventional abrasive wheel given by "51 A 60 K 5 V 05"?
- 7)The process of enlarging the holes to accurate sizes is called:
- 8)Which of the following is the softest abrasive?
- 9)The largest diameter of work that can be carried between the centers of a lathe is known as-
- 10)___________ consists of a mixture of clay, feldspar, flint, and frit in varying proportions.
