An old clutch is to transmit a torque of 100 N-m. The inner and outer diameter of the clutch plate is 100 mm and 200 mm respectively. The force requir
Question

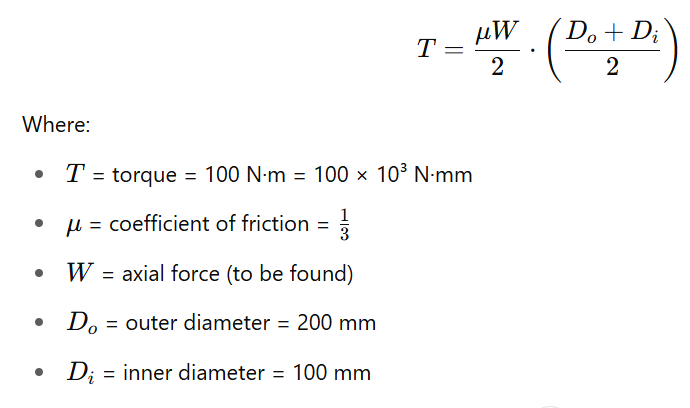

An old clutch is to transmit a torque of 100 N-m. The inner and outer diameter of the clutch plate is 100 mm and 200 mm respectively. The force required for engagement is (assume µ = 1/3 with uniform wear theory)
A.
4 kN
B.
10 kN
C.
25 kN
D.
50 kN

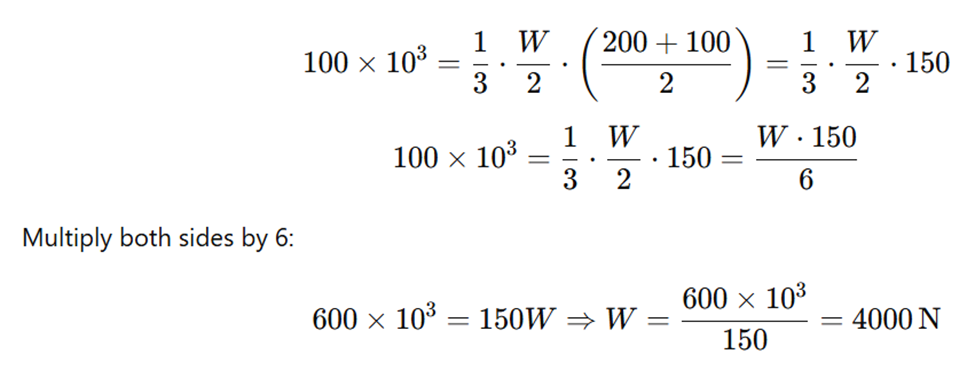

Correct option is A
