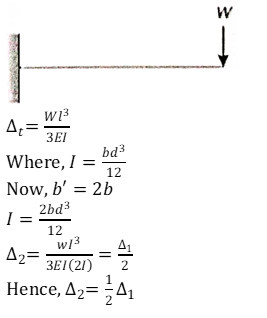

A cantilever beam of rectangular cross-section is subjected to a concentrated load W at its free end. If the width of the beam is doubled the deflection at the free end as compared to the earlier case will be:

A simply supported beam of 8 m has two vertical point loads: 10 kN at 2 m from the left support, 10 kN at 6 m from the left support. Using the graphical method, what is the approximate reaction at the left support ?

A simply supported beam of 8 m has two vertical point loads: 10 kN at 2 m from the left support, 10 kN at 6 m from the left support. Using the graphical method, what is the approximate reaction at the left support ?
